Conditional Page break in SSRS

Conditional page breaks in SSRS are always something developer needs to work on in order to get it done. This is especially true when you need to render the same report in PDF.

Recently I need to implement the same and did that with a quick trick. Here is the sample SELECT I am using to demonstrate the same.

select 'Record 1' as record, 0 as PageBreak, 1 as grp
UNION ALL
select 'Record 2' as record, 0 as PageBreak, 1 as grp
UNION ALL
select 'Record 3' as record, 0 as PageBreak, 1 as grp
UNION ALL
select 'Record 4' as record, 1 as PageBreak, 2 as grp
UNION ALL
select 'Record 5' as record, 0 as PageBreak, 3 as grp
UNION ALL
select 'Record 6' as record, 0 as PageBreak, 3 as grp
UNION ALL
select 'Record 7' as record, 1 as PageBreak, 4 as grp
UNION ALL
select 'Record 8' as record, 0 as PageBreak, 5 as grp

"Record" column is just to show unique records. The most important column here is "PageBreak", which is setting the conditional page break with "1". That means whenever there is "1" in "pagebreak" column you need a page break otherwise keep on displaying the records on same page.

The other very important column is "grp". Well, you really don't need this column and still will be able to implement conditional page break functionality. But then SSRS will club all the records which requires page break into 1 grouping set, probably in the end with this sample data. So, in order to maintain the sequence of records we need to add a grouping column which will create a new group whenever it finds a different value in "pagebreak" column.

Now, lets move on to SSRS report. These steps will work in SSRS 2008. I am not adding standard steps of creating a data source and data set. I know you are all smart guys...

Simple enough, please follow these steps.

1. Add a table with 2 columns, record and pagebreak.
2. Now run the report and you will see all the records are coming in same page.
3. Next, add a parent group to this row, parent to "Details" group in "Row Groups". Please check "Image 1".
4. In the group expression select the "grp" column and the sorting, select "grp" in Sort by. Please check "Image 2".
5. MOST Important, select "Between each instance of a group" of the newly create group under "Page Break" tab. Please check "Image 3".

Yep, that's it, run the report now. And you will see 3 records on page 1, 1 record on page 2, 2 records on page 3 and 1 record on page 4 and page 5.

Image 1

Image 2

Image 3

There are also other ways of doing the same, but I find this one very easy to implement.

Don't forget to hide new group by just minimizing the width and you are good to go. Try to render the same in PDF, and it works like a charm....

- Mohit Nayyar

Data extrapolation on the fly

In some cases we need to generate the data based on a starting date, to an end data (today-getdate()).

This process is called data extrapolation based on limited information (starting date). Here I am trying to achieve the same without storing data in temp./staging tables.

First I am creating a temp. table wih 2 rows and now I need to generate rest of the rows starting from given date to today's date.

Next step is to make use of CTE to generate sequence of rows and finally making use of CROSS JOIN to join the sequence with real data and get the desired output.


CREATE TABLE #TEMP (
MYNAME VARCHAR(10),
STARTDATE DATETIME)
GO

INSERT INTO #TEMP VALUES ('Mohit', '2008-09-15')
INSERT INTO #TEMP VALUES ('Nayyar', '2008-09-22')
GO

WITH FIRST2(SEQ)
AS (SELECT 1
UNION ALL
SELECT 1),

FIRST4(SEQ)
AS (SELECT 1
FROM FIRST2 X
CROSS JOIN FIRST2 Y),

FIRST16(SEQ)
AS (SELECT 1
FROM FIRST4 X
CROSS JOIN FIRST4 Y),

FIRST256(SEQ)
AS (SELECT 1
FROM FIRST16 X
CROSS JOIN FIRST16 Y),

FIRST65536(SEQ)
AS (SELECT 1
FROM FIRST256 X
CROSS JOIN FIRST256 Y),

SEQROWS
AS (SELECT ROW_NUMBER()
OVER(ORDER BY SEQ) AS SEQNUMBER
FROM FIRST65536 WITH (NOEXPAND))

SELECT MYNAME,
STARTDATE,
DATEADD(DAY,N.SEQNUMBER - 1,STARTDATE) AS EXTRAPOLATION
FROM #TEMP
CROSS JOIN SEQROWS N
WHERE N.SEQNUMBER <= DATEDIFF(DAY,STARTDATE,GETDATE())
ORDER BY MYNAME,
STARTDATE,
3
GO

DROP TABLE #TEMP
GO


Thanks
Mohit Nayyar

Things You Didn't Know About Temp Tables and Table Variables

I recently found really useful information on temp. table and table variable usage. I am sure this will be useful to SQL Community as well.

http://www.sqlservercentral.com/articles/63472/


- Mohit

SSIS approach to handle Inferred Members

While loading data in Fact tables we usually see a scenario where the fact data is available but there is no corresponding business key in the related dimension.

In this case we choose multiple options to resolve the issue.

1. Ignore that fact


2. Insert the associated business key in dimension table and return the newly generated surrogate key from dimension table. And now store the data in Fact table with the surrogate key.

The second approach relates to a term called “Inferred members”. All the other attributes of that dimension will also get updated in next run of dimension load (usually nightly load).

In SSIS there are multiple options available to implement the second case.

First approach is to do lookup on the dimension table and for all the rows that are now matching, insert the business key in Dimension table and then do the lookup again to get the surrogate key.

Second approach is to make use of Lookup and Script component. Lookup component will ignore rows with no matching business key in dimension table. Then script component will process only those rows where it didn’t find the associated surrogate key and finally insert the same in dimension table and return the associated surrogate key through stored procedure output parameter.

This script component approach is more efficient because its using the existing lookup component only once and then doing all the processing in script component.

But the additional benefit comes if we make use of .Net Generic.SortedDictionary class to store the cache information regarding the newly generated key. Read more about this here…
http://msdn.microsoft.com/en-us/library/f7fta44c(VS.80).aspx

- Mohit

Selective Cube Measure Groups processing using “Analysis Services Processing Task” in SSIS

Sometime its not feasible to process the full cube, so it makes sense to only process the selective measure group in the cube.

This is especially true when you have really big cube which takes time to process and sometime we just need to load data for only few business metrics.

Here is the small example to process only selective measure groups using “SSIS Analysis Services Processing Task”.

I am assuming that the measure group names are stored in a variable and after that we need to create “Processing Commands” to process the cube.

Processing Commands: We need to set this property in “Analysis Services Processing Task” to process the measure groups. So I will be using “Script Task” to generate the command.

Just make sure that the “Delay Validation” property of “Analysis Services Processing Task” is set to “True”.

Follow these steps now……..

1. Get comma separated list of all measure groups needs to be processed in local SSIS variable let say “varMeasureGroups”. You can get this list from some sort of configuration, so no hard-coding ;)

2. Creates the command using “Script Task” and store the final command in local SSIS variable let say “varCubeCommand”

3. In “Analysis Services Processing Task” task set the property “Processing Commands” using expressions to the recently created variable named “varCubeCommand”.

That’s it………no need to process the full cube now………

Dim strSplitMeasureGroup As String(), i As Integer, strCmd As String

strSplitMeasureGroup = Split(Dts.Variables("User::varMeasureGroups").Value.ToString, ", ")

strCmd = "<Batch xmlns=""http://schemas.microsoft.com/analysisservices/2003/engine"">"

For i = 0 To strSplitMeasureGroup.Length – 1

strCmd = strCmd & "<Process xmlns:xsd=""http://www.w3.org/2001/XMLSchema"" "

strCmd = strCmd & "xmlns:xsi=""http://www.w3.org/2001/XMLSchema-instance"">" & Chr(13)

strCmd = strCmd & "<Object>" & Chr(13)

strCmd = strCmd & "<DatabaseID>myCube</DatabaseID>" & Chr(13)

strCmd = strCmd & "<CubeID>myCube</CubeID>" & Chr(13)

strCmd = strCmd & "<MeasureGroupID>" & strSplitMeasureGroup(i) & "</MeasureGroupID>"&chr(13)

strCmd = strCmd & "</Object>" & Chr(13)

strCmd = strCmd & "<Type>ProcessFull</Type>" & Chr(13)

strCmd = strCmd & "<WriteBackTableCreation>UseExisting</WriteBackTableCreation>" & Chr(13)

strCmd = strCmd & "</Process>" & Chr(13)

Next

strCmd = strCmd & "</Batch>"

Dts.Variables("User::varCubeCommand").Value = strCmd

- Mohit Nayyar

UPDATE: SSIS - deadlock was detected while trying to lock variables

Recently I found this issue of deadlock variables in SSIS and finally made two solutions

1. Instead of declaring variables in Script properties (ReadOnlyVariables / ReadWriteVariables), better to make use of Dts.VariableDispenser.LockForRead / Dts.VariableDispenser.LockForWrite in the script to lock variables

2. I also solved my problem by running child packages out-of-proc (ExecuteOutOfProcess=TRUE in Execute Package Task), this is more to do with script caching

But recently I saw something strange and found out that one of my script is making use of this type of code and I am getting this error again.....

"The script threw an exception: A deadlock was detected while trying to lock variables "variable names (comma separated)" for read access and variables "variable names (comma separated)" for read/write access. A lock cannot be acquired after 16 attempts. The locks timed out."



Dim var As Variables



Dts.VariableDispenser.LockForWrite("User::VarName")



Dts.VariableDispenser.GetVariables(var)



'Problem Line, Just remove the reference to Dts.Variables

Dts.Variables("User::VarName").Value = "SomeVal"



'Correct Line, make use of locally declared "var" Variable

var("User::VarName").Value = "SomeVal"



var.Unlock()



To solve the situation I made a quick fix and change my Dts.Variables to local variable collection I defined in the beginning "var".

As we can see in this script that we are locking one variable for write. But after using the GetVariables we MUST use "var" collection to write data and should NOT use Dts.Variables and that fixed my problem.

So I think this is some sort of double locking issue, like if I lock the variable using "Dts.VariableDispenser" and if I try to access the same variable again with Dts.Variables instead of "var" then SSIS tries to lock that again......



- Mohit Nayyar

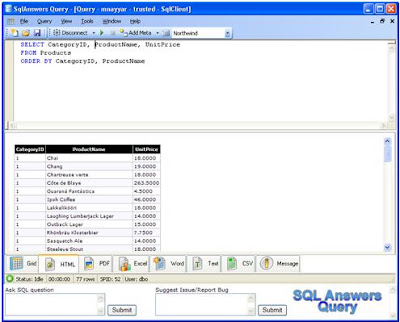

SQL Query tool that generates HTML / PDF / Word / Excel output

I just saw this new query tool from SQL Answers.

The beauty of this tool is to directly generate the output of any query into PDF / HTML / Excel / Word / CSV format. Please take a look here…....

http://www.sqlanswers.com/Software/SAQ/Default.aspx




This seems to be a lightweight tool to query multiple databases platforms like Microsoft SQL Server, Oracle, DB2, Microsoft Access and MySQL, but I just tested this for Microsoft SQL Server 2005 and I am really happy with this.

This makes things really easy when you need to send the output in PDF or HTML without any extra effort.

On the similar lines Microsoft also offers a “SQL Server Web Data Administrator” tool, which is very useful because of its basic web interface. You can find this here…….

http://www.microsoft.com/Downloads/details.aspx?familyid=C039A798-C57A-419E-ACBC-2A332CB7F959&displaylang=en

- Mohit Nayyar

DTS to SSIS migration

Today I saw a new product coming soon to do DTS to SSIS migration called DtsXchange.

Looks promising and this is also capable to do something extra which built-in DTS migration doesn’t do like Dynamic Properties. Have a look here http://www.pragmaticworks.com/dtsxchange.htm


Users can also migrate existing DTS packages into SSIS using the FREE migration wizard provided by SQL Server 2005 but this wizard doesn’t cover complete DTS package. So in some cases manual effort is required, and SSIS doesn’t support some of the DTS features, so the user has to manually implement the functionality in new SSIS package.

You can find some known issues in migration here http://technet.microsoft.com/en-us/library/ms143462.aspx


But on top of this SSIS allows you to run the existing DTS package even without any change, using a wrapper called “Execute DTS 2000 Package Task” in the new SSIS package.

So if you don’t have the bandwidth to migrate the existing package then keep on running the old DTS packages in SSIS and start making new packages in SSIS.

Obviously you will miss the “All NEW SSIS” but it’s an easy work around. But I think you will miss a lot, because SSIS is NOT a new name of DTS but it's a truly enterprise level ETL tool. So its always better to migrate to SSIS as soon as possible.


- Mohit Nayyar

Get all user defined table information with RowCount and Size (space used)

"sp_spaceused" procedure is really handy to get the updated information about space usage by database or tables.



I combined the same with another very useful procedure "sp_MSforeachtable" to get this information for all user-defined tables.



If you see any problem with the information then just change the last parameter and set it to TRUE (FALSE in the script). That will update the space usage and then report the updated details.



CREATE TABLE #temp

(

TableName                    NVARCHAR (128),

RowsCnt                       VARCHAR (11),

ReservedSpace             VARCHAR(18),

DataSpace                    VARCHAR(18),

CombinedIndexSpace   VARCHAR(18),

UnusedSpace               VARCHAR(18)

)



EXEC sp_MSforeachtable 'INSERT INTO #temp (TableName, RowsCnt, ReservedSpace, DataSpace, CombinedIndexSpace, UnusedSpace) EXEC sp_spaceused ''?'', FALSE'



SELECT TableName, RowsCnt, ReservedSpace, DataSpace, CombinedIndexSpace, UnusedSpace

FROM #temp

ORDER BY TableName



DROP TABLE #temp





- Mohit Nayyar



SSIS - deadlock was detected while trying to lock variables

Recently I faced one MAJOR issue in my ETL packages because of new patches deployed on Microsoft Windows 2003 Server.

"A deadlock was detected while trying to lock variables "variable names (comma separated)" for read/write access. A lock cannot be acquired after 16 attempts. The locks timed out."

OR

"The script threw an exception: A deadlock was detected while trying to lock variables "variable names (comma separated)" for read access and variables "variable names (comma separated)" for read/write access. A lock cannot be acquired after 16 attempts. The locks timed out."


It's more to do with Script component/Task used in the package and making use of "ReadOnlyVariables" and "ReadWriteVariables" properties for declaring variables that will be used in the script.

Technically if we declare variables in these two properties then there is NO need to lock these variables in the script, and this is exactly what we were doing in the past prior to these patches....

Windows 2003 Post-SP2 Hotfix - MS07-31/935840 W2K3 Server
Windows 2003 Post-SP2 Hotfix - MS07-34/929123 W2K3 Server
Windows 2003 Post-SP2 Hotfix - MS07-039/926122 W2K3 Server
Windows 2003 Post-SP2 Hotfix - KB924054 W2K3 Server
2.0 IE Update W2K3 Server

Now I don't know which one of these patches is causing the real problem but yes it's one of them for sure.

We can see these error in the SSIS logging files...

Now the quick fix to these errors are NOT using "ReadOnlyVariables" and "ReadWriteVariables" properties for declaring variables that will be used in the script. Instead a better way is to declare the same in script itself and then locking and unlocking the same using DTS object model.


Imports System
Imports System.Data
Imports System.Math
Imports Microsoft.SqlServer.Dts.Runtime

Public Class ScriptMain

Public Sub Main()

Dim myVar As Variables

Dts.VariableDispenser.LockForWrite("User::Var1")
Dts.VariableDispenser.LockForWrite("User::Var2")

Dts.VariableDispenser.GetVariables(myVar)

myVar("User::Var1").Value = "SomeValue"
myVar("User::Var1").Value = "SomeValue"

myVar.Unlock()

Dts.TaskResult = Dts.Results.Success

End Sub

End Class


Let me know if you know the exact source of this problem.

- Mohit Nayyar
